KONAMI 054986A   27

FRANCK / 054986A

Konami 054986A

À terminer.

Les composants sont sur une façe du pcb pour faciliter test/mesure/remplacement sauf pour le chip principal.

Les PCB sont à terminer selon votre feeling.

  • RC4558, se trouve facilement, j’en ai 3 neufs (+1€)
  • AD1868R, plutôt cher car obsolète

Quand au Konami 054321, il faut absolument le transférer, il n’y a pas eu de reverse engineering de ce chip.

Juste vérifier plusieurs fois que le chip Konami est bien soudé car ce sera le seul inaccessible.

Design avec Kicad (by myself) et fabrication JLCPCB avec implantation des CMS par eux.

Je propose plusieurs options

  • 25€ la carte seule sans les chips, vous faites tout
  • 75€ je vais le boulot de transfert , démontage , réinstallation
  • 100€ la carte complète prète à être insallée, avec le Konami 054321 et ADC AD1868R

English reader welcome !

This is a replacement board I made for a friend. I do not provide the AD1868 nor the 054321.

4 boards available, send by classic postage, I accept paypal & SEPA bank.

Everything is on one side to ease testing/fixing. The board cannot be easily socketed because the original board’s pitch is a little bit more than 1.778mm. Direct soldering the small PCB on the main board with 64 small wires is the simplest thing to do and easily desoldered by cutting the 64 wires. It may accept some twisting to enforce a male female socket with some cuttings and the play nevertheless.

I offer several option :

  • 25€ The standlone board without Konami chipset without AD1868R
  • 75€ The transfert of your 054321 and test
  • 100€ The full board with the Konami and ADC, tested

KONAMI 054986A

KONAMI 054986A

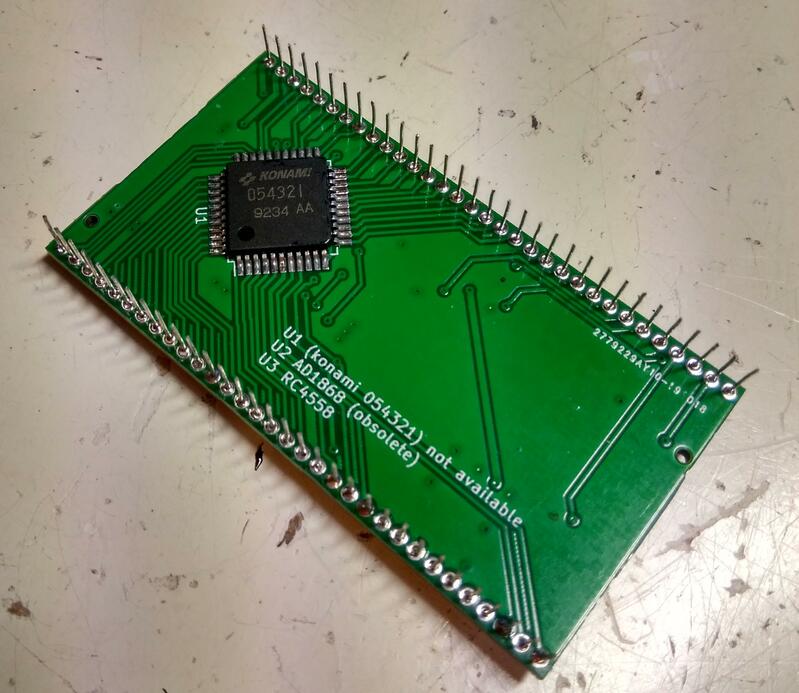

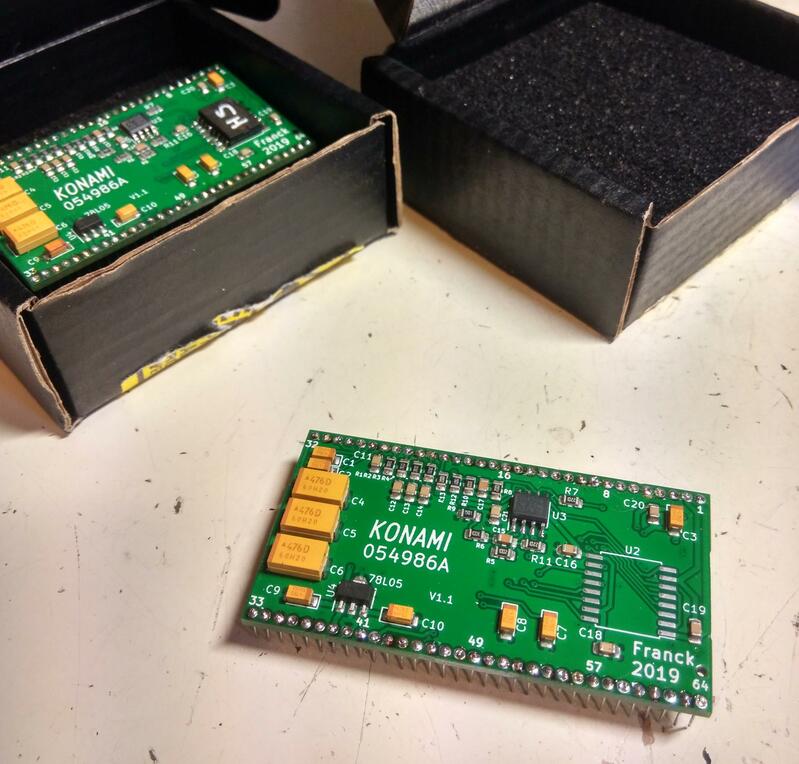

Prèt à être installé / Ready to install

Prèt à être installé / Ready to install


Prèt à être installé / Ready to install

Prèt à être installé / Ready to install

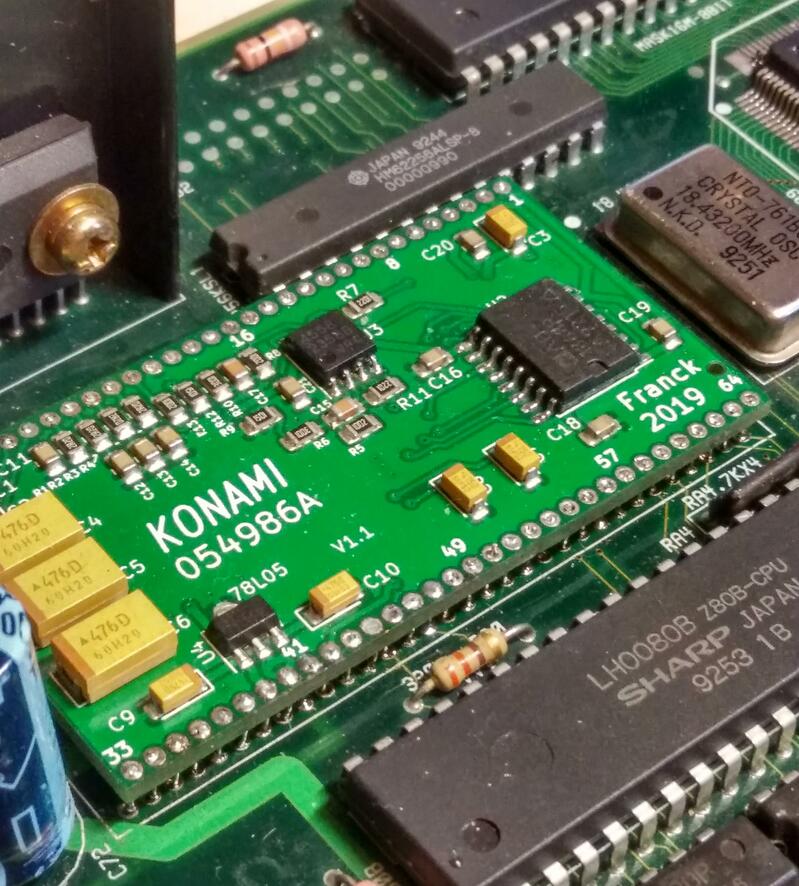

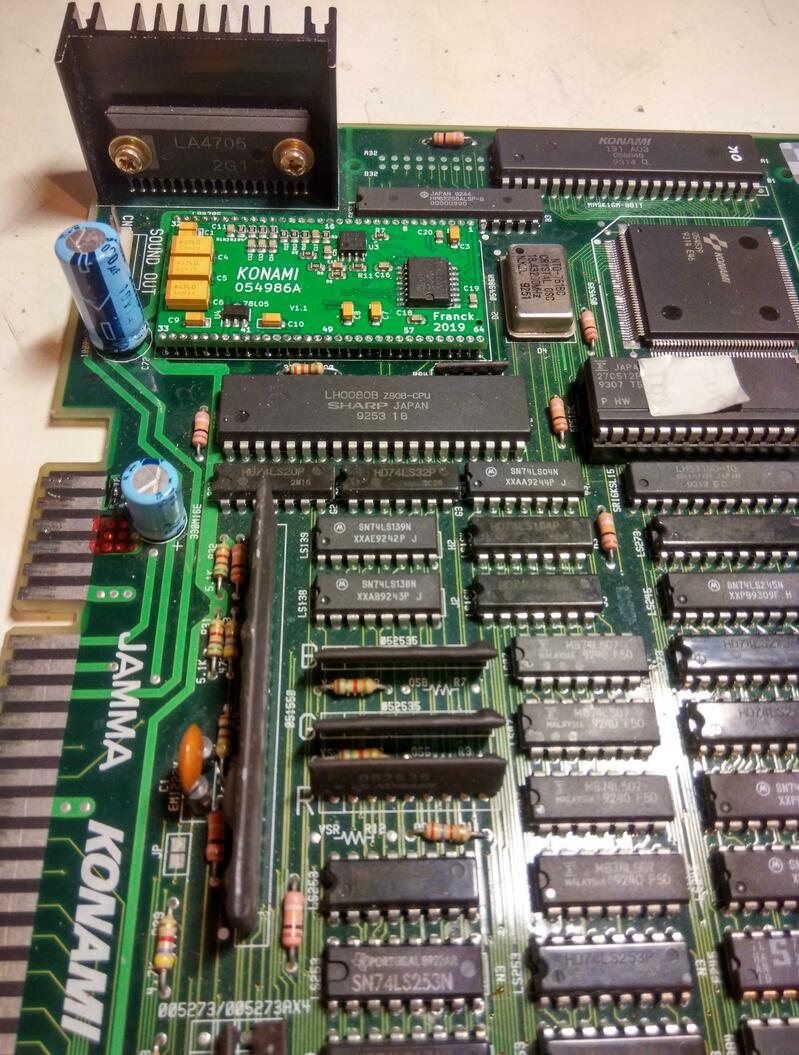

Installé et testé / Installed and working

Installé et testé / Installed and working

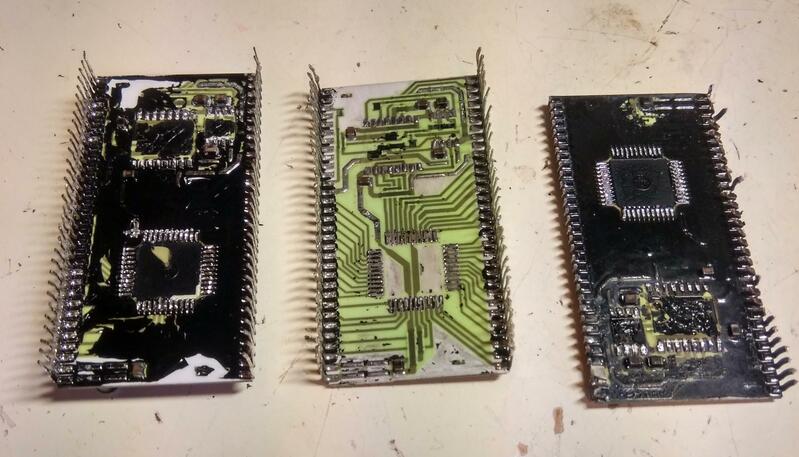

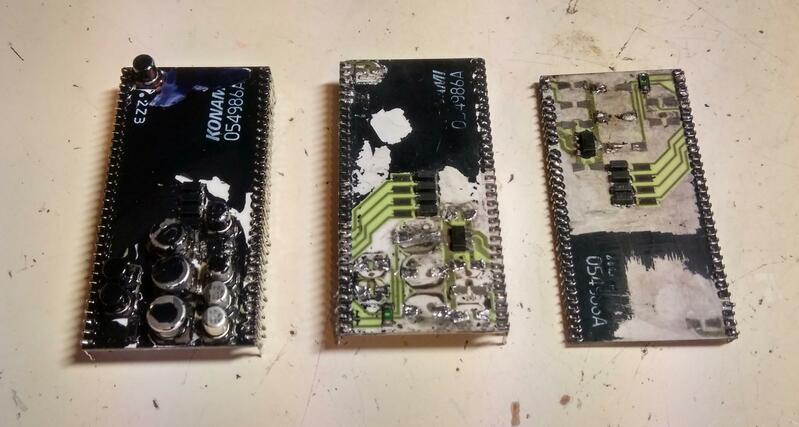

Ancien modules / old modules

Ancien modules / old modules


Ancien modules / old modules

Ancien modules / old modules

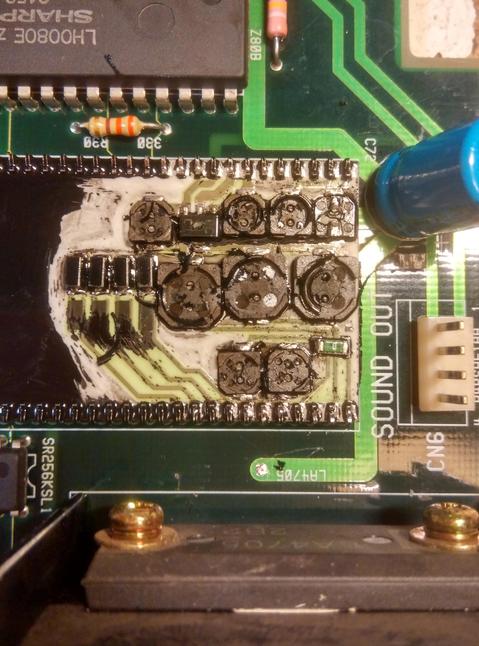

Capas décapitées

Capas décapitées
